Hinged Neck Wire

by Judy Freyer Thompson
  • Category: Contemporary
  • Technique(s): Forging, Riveting
  • Skill Level: Intermediate
Turn a length of 12 gauge wire in to a cool hinged necklace.

Materials

12 Gauge Round Dead Soft Copper Wire
H11-12D
  • Lesson Quantity: 2.00 feet
  • Purchase Quantity: 1.00 5FT
  • Price: $9.78
  • Gold Club Price: $7.34
Add to Bag
1/16” x 5/16” flat head copper rivet
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
Large hole focal bead of your choice
Shop Now
24 kt Aventurina Swirl Rectangle Aqua, Yellow Gold, Size 25mm x 18mm
A3-261
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $11.97
  • Gold Club Price: $8.98
Out of Stock
24 kt Aventurina Swirl Teardrop Rubino, Yellow Gold, Size 34mm
A3-270
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $21.97
  • Gold Club Price: $16.48
Out of Stock
24 kt. Aventurina Swirl Large Disc Rubino, Yellow Gold, Size 30mm
A3-247
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $18.57
  • Gold Club Price: $13.93
Out of Stock
Add All Items to Cart

Tools

Xuron Flush Cutter - Pack of 1
G2-504
  • G2-504
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $29.95
  • Gold Club Price: $22.46
Add to Bag
Round Nose Wire Pliers
G2-507
  • G2-507
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $32.95
  • Gold Club Price: $24.71
Add to Bag
6PC File Set
FIL-912.10
  • FIL-912.10
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $39.97
  • Gold Club Price: $29.98
Add to Bag
Chasing Hammer with Wooden Handle, 1 1/8 Inch Face
G3-27
  • G3-27
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $13.95
  • Gold Club Price: $10.46
Add to Bag
Deluxe V-Slot Bench Pin with Clamp
BPN-105.00
  • BPN-105.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $10.95
  • Gold Club Price: $8.21
Add to Bag
Steel Bench Block 4x4 Inch - Pack of 1
G17-10
  • G17-10
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $21.95
  • Gold Club Price: $16.46
Add to Bag
Auto Center Punch
PUN-430.00
  • PUN-430.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $8.97
  • Gold Club Price: $6.73
Add to Bag
Swivel-Headed Pin Vise
PIN-220.00
  • PIN-220.00
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $5.57
  • Gold Club Price: $4.18
Add to Bag
Wubbers Oval Mandrel Pliers - 4 Plier Set with Block
G15-15
  • G15-15
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $164.88
  • Gold Club Price: $123.66
Add to Bag
Polished Cast Iron Neck Mandrel
G7-12
  • G7-12
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
  • Price: $99.95
  • Gold Club Price: $74.96
Add to Bag
Diamond Coated 3/32 Drill Bits - Set of 6
G26-55
  • G26-55
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 pieces
  • Price: $38.97
  • Gold Club Price: $29.23
Out of Stock
SANDING SPONGES ASST- 5PC- 1EA GRIT 100-400
ABR-600.90
  • ABR-600.90
  • Lesson Quantity: 1.00 pieces
  • Purchase Quantity: 1.00 each
Add All Items to Cart
Instructions
Step 1
Clean the wire with the 400 grit sandpaper. Using the ruler and permanent marker measure 10" on the length of wire and cut using the wire cutters, file the ends flat. Measure and mark ½" on each end. Using the flat faced chasing hammer and steel bench block, hammer the ends into a paddle shape to the marks.

Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 2
Using the flat file, rest the wire on the bench pin, round the ends and remove any burrs. Repeat on one end of the remaining wire.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 3

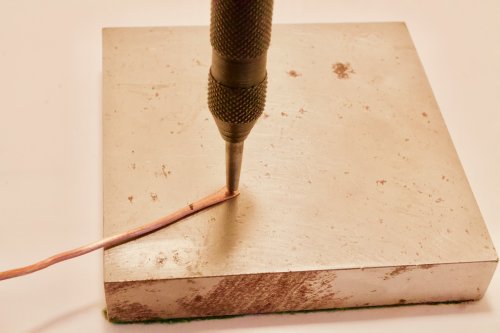

On one end of the 10" wire and one end of 20" wire, make a mark in the center of the paddle. Rest the wire on the steel bench block and make a divot at the mark using the auto center punch.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 4
Drill using the pin vise and #52 bit.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, drill
Step 5
Cut a piece of index card or card stock, fold to make double thickness and drill a hole in the center. Install the rivet through one paddle, place the index card on the rivet, then position the other paddled wire on top.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 6
Trim the shank to 1/16", and set the rivet using the round side of the chasing hammer. Remove the index card.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 7
Measure 9", 11" and 13" from the rivet on the 20" wire.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 8
Using the 12 mm side of the Wubbers, make a bend at the 9" mark, repeat at the 11" mark.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 9
Use the 15 mm side bend at the 13" mark.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 10

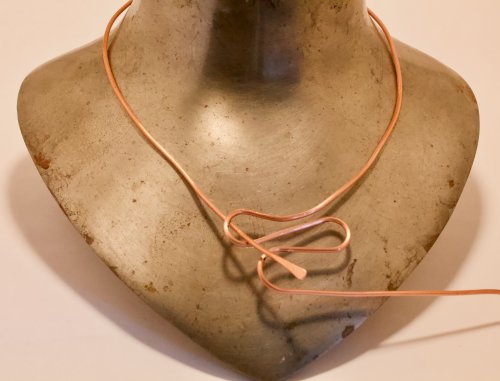

Position the wire on the necklace mandrel, rivet centered in the back. Bend each wire around the mandrel, forming the body of the neck wire.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 11
Adjust so the first loop you made is pointing up, this will be the catch for the other end. Using the round nose pliers, make a bend in the shorter wire to form a hook.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 12
To add dimension and work harden the neck wire, use the round side of the chasing hammer and strike the wire while on the necklace mandrel.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 13
Slide a large hole bead on the end of the wire, paddle the end as in step 1.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
Step 14
Add some ribbon or fiber if desired.
Judy Freyer Thompson's Hinged Neck Wire - , Contemporary Wire Jewelry, Forging, Forging Jewelry, Jewelry Forging, Riveting, Riveting Techniques, Wire Rivets, hinged neck wire
