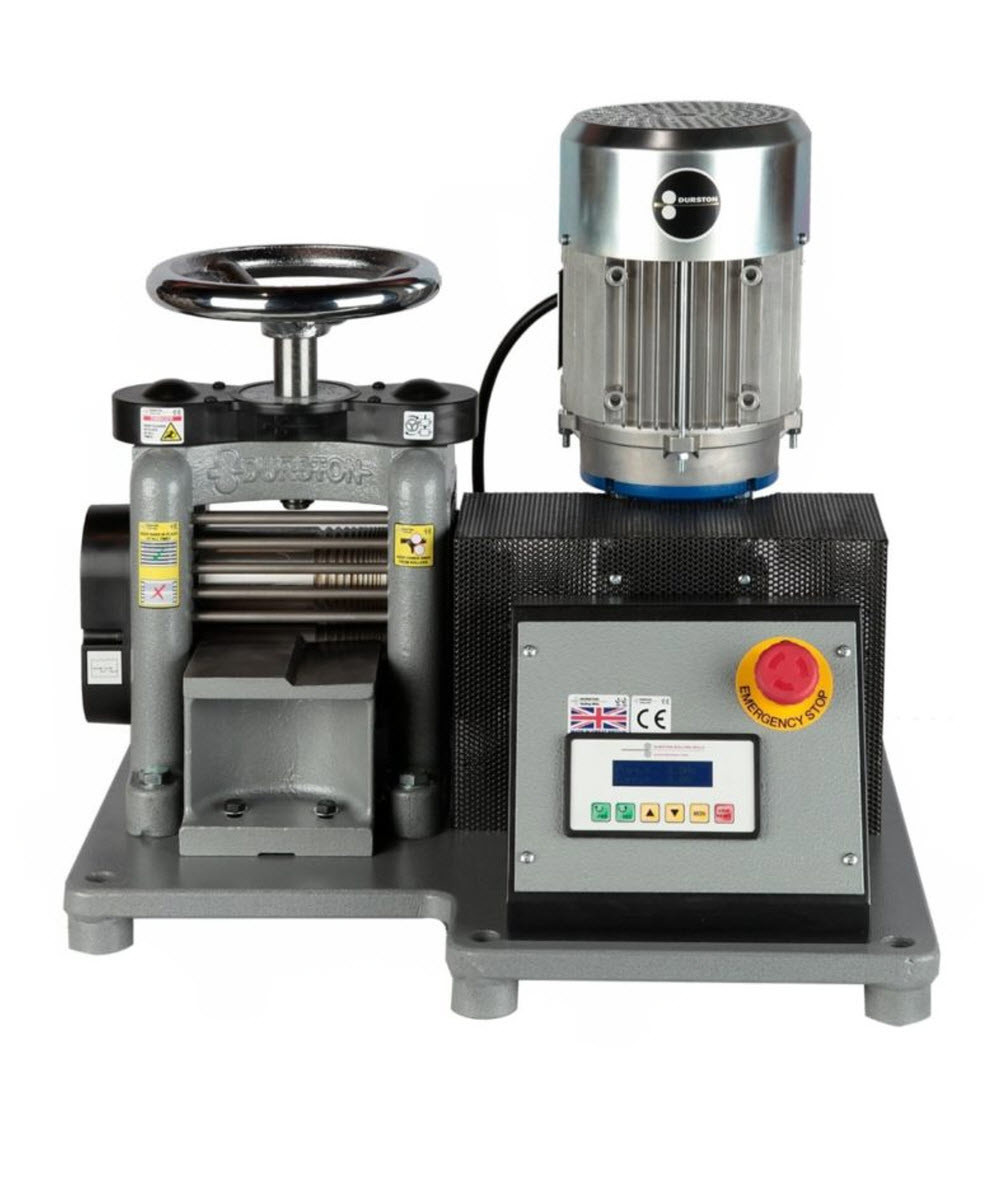

TUI C130 Single Sided Powered Rolling Mill from Durston Tools. As with all Durston Tools' powered mills, the TUI C130 has variable speeds in forward and reverse plus side extensions securely stored behind black guards. The rolls themselves are combination rolls including 11 wire grooves from 8mm to 1mm and a 80mm flat rolling surface to create a perfect finish every time. The 1.1KW 110 or 240 volt motor provides consistent power through the lifetime of the mill. Digitally controlled variable speeds from 5 to 20 RPM means you have complete control over each roll and the side extensions provide four half rounds of 4, 3, 2, 1.5 mm for additional versatility.
Durston Tools' TUI Powered Rolling Mill range creates the same quality and output you expect from Durston Tools' powered mills but at a lower cost. Where it matters the same components are used from the Core DRM range, such as the actual mills, rolls and casting gears. The cost savings are made by replacing the cast iron plate and main guard with steel and by having one central emergency stop button. The same standards of production and manufacturing are applied to the TUI range as you have come to expect from Durston Tools' range.
WEIGHT | 111 kg |
---|---|
PRODUCT WEIGHT (KG) | 110KG |
PRODUCT LENGTH (MM) | 830 |
PRODUCT WIDTH (MM) | 390 |
PRODUCT HEIGHT (MM) | 540 |
NUMBER OF GROOVES | 11 |
MAX. SHEET THICKNESS (MM) | |
ROLLER TYPE | |
ROLLER DIAMETER (MM) | 65 |
ROLLER LENGTH (MM) | |
SIDE EXTENSIONS | 2 & 1.5mm, 3, 4 |
MAX. WIRE CAPACITY (MM) | |
VOLTAGE | 110V, 220V |
RANGE |
