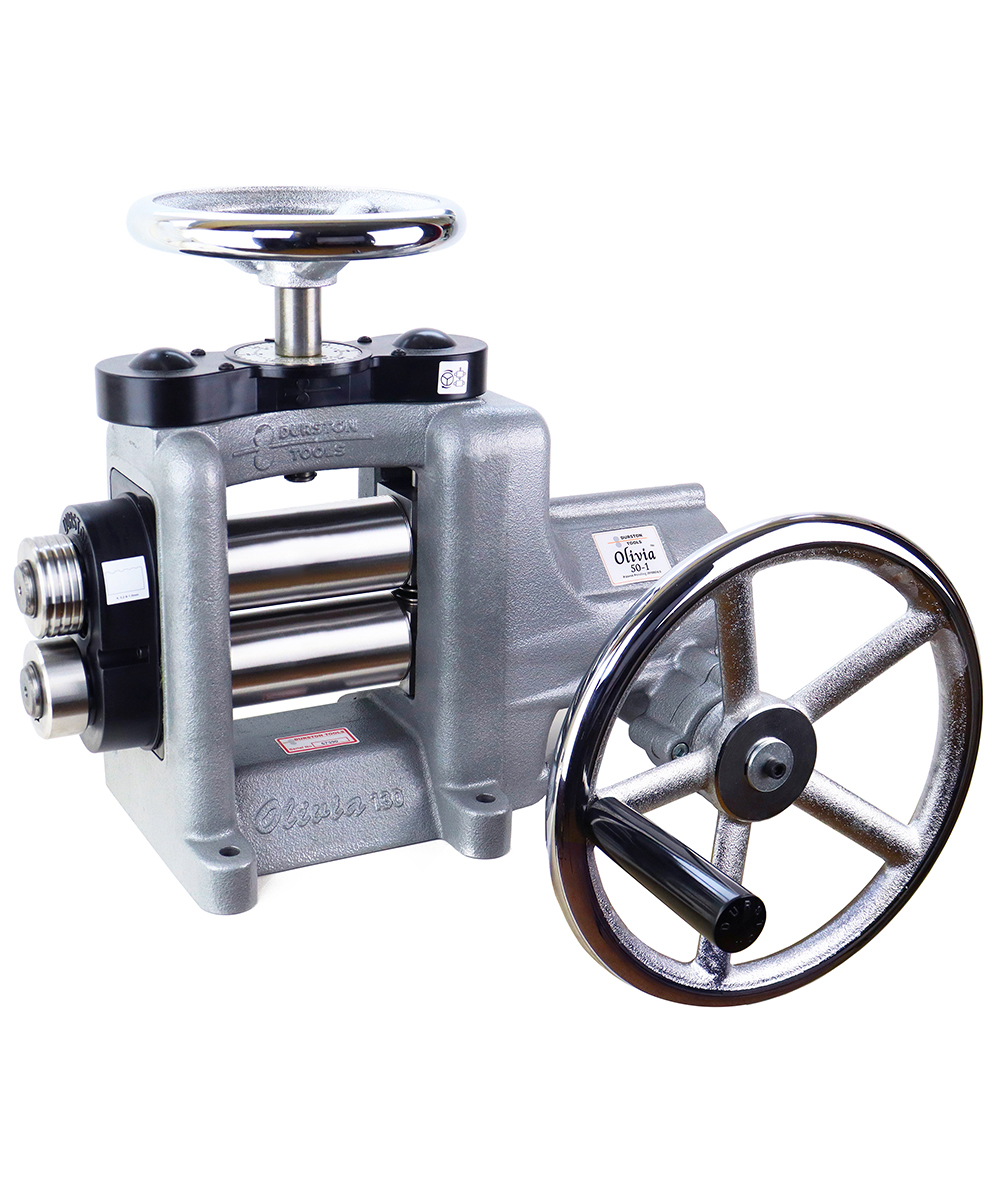

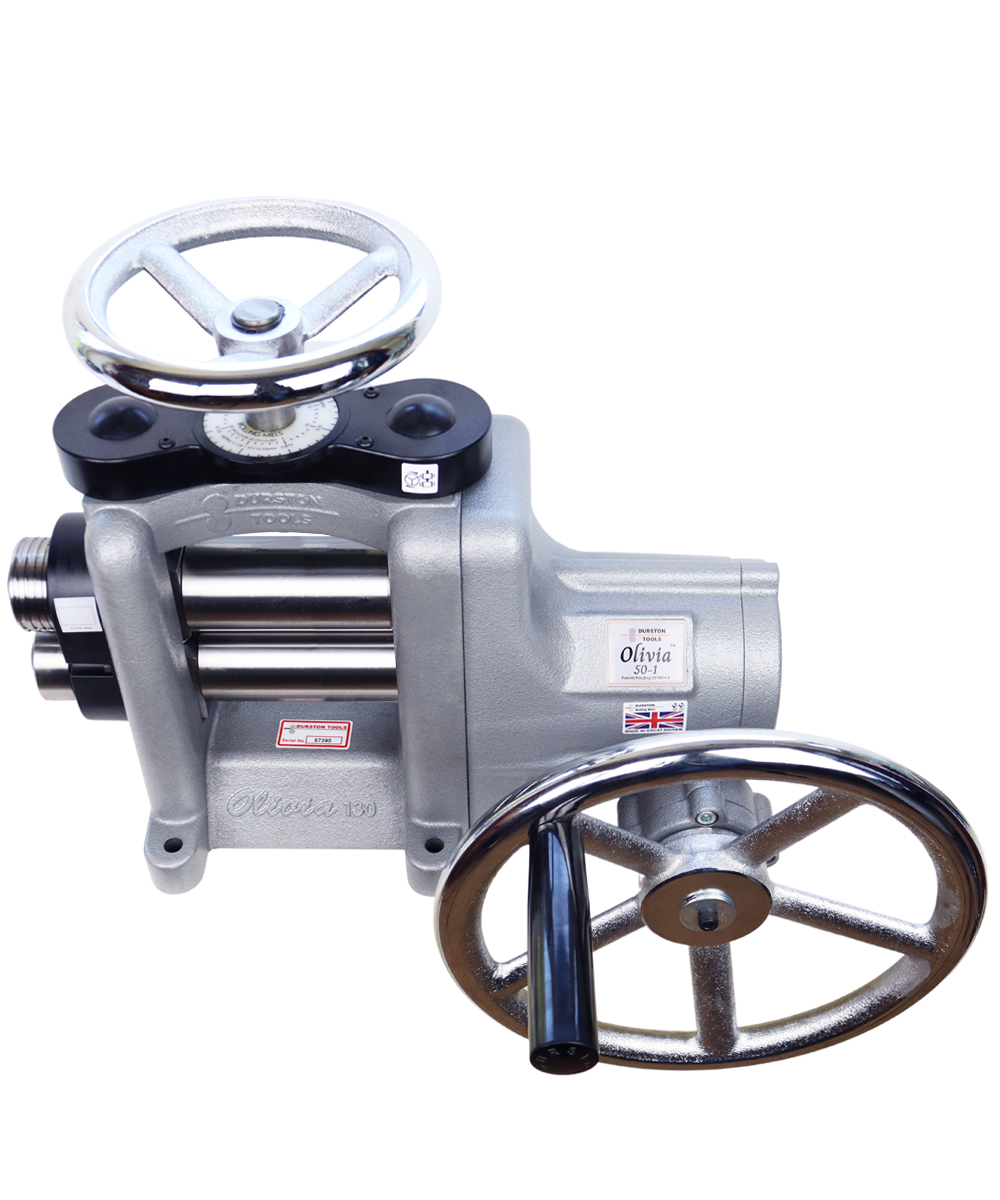

As with all of our Rolling Mills the Olivia™ F130 features a solid single cast body, induction hardened rolls and our classic highly calibrated adjustment wheel ensuring a lifetime of rolling with professional results.

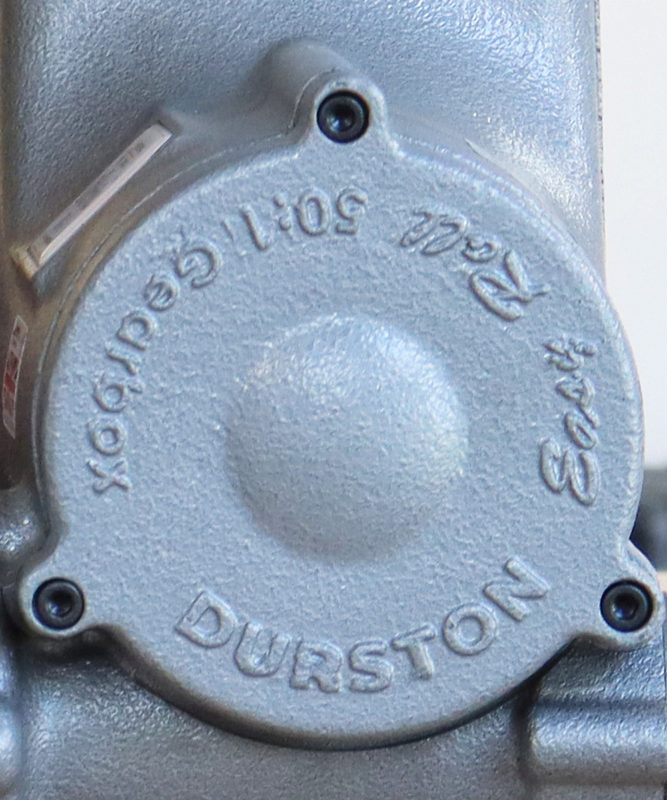

The 50-1 gearbox making it that much easier to Roll out material. - It will take 50 turns of the handwheel to turn the rolls once. The gearbox and handwheel has been designed to work together to make turning so much easier. The specially designed Patent Pending gearbox along with the inertia of the handwheel means you can turn the handwheel up to 10 times as quick as a standard rolling mill with a 4-1 reduction.
The Oliva™ F130 is designed exclusively to roll flat sheet metals and half round wire (using the side extension) and is the perfect solution for this task. Durston Rolling Mills are proven to be solid, reliable workhorses in many jewellers' workshops and factories offering years of service. The Oliva™ F130 is no exception.
WEIGHT | 70 kg |
---|---|

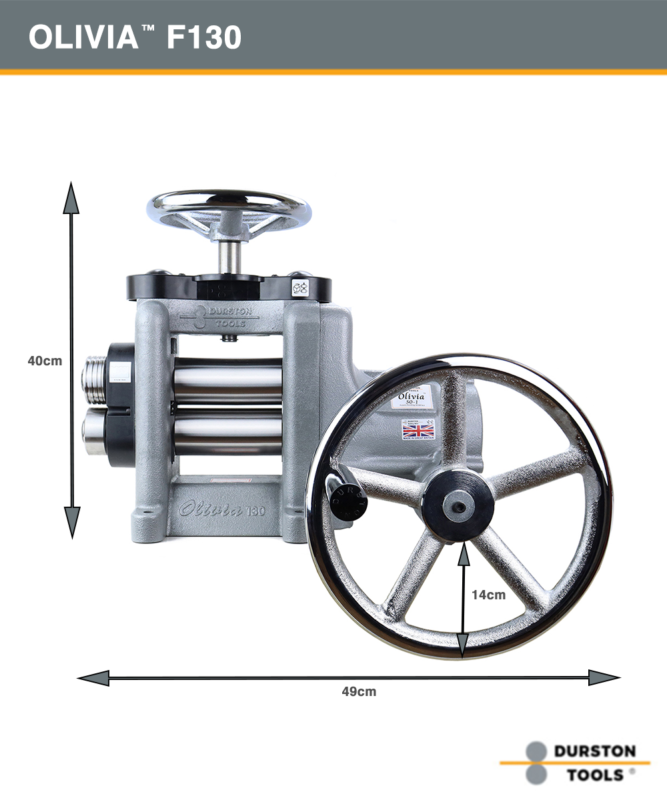

PRODUCT LENGTH (MM) | 220 |
PRODUCT WIDTH (MM) | 490 |
PRODUCT HEIGHT (MM) | 540 |
GEARBOX | 50-to-1 gearbox |
MAX. SHEET THICKNESS (MM) | 6 |
ROLLER TYPE | Flat |

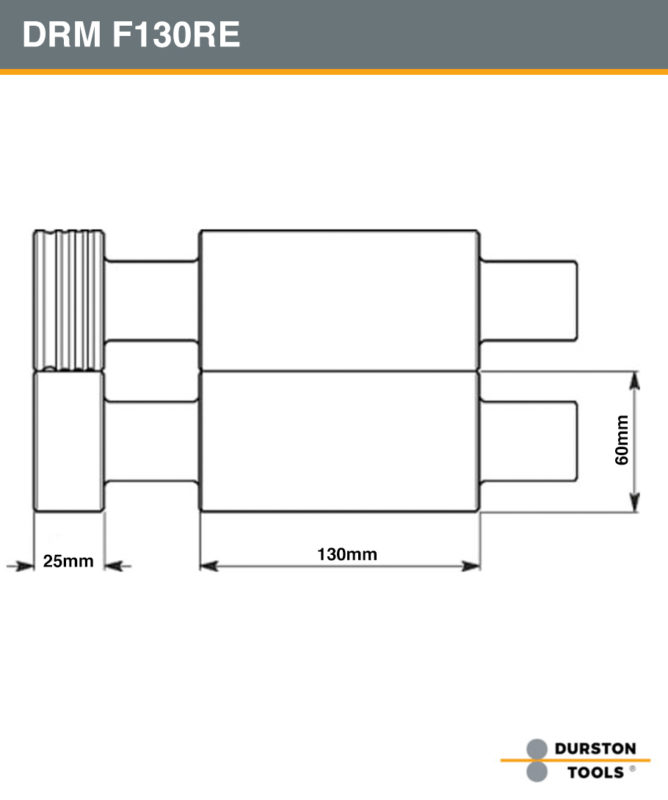

ROLLER DIAMETER (MM) | 60 |
ROLLER LENGTH (MM) | 130 |
SIDE EXTENSIONS | 4, 3, 2, 1.5mm |
